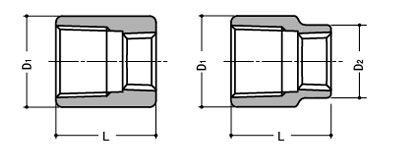

异径螺纹管接头（锥形） RS
| 呼び径 | D1 | D2 | L | 小径寸法 | |
| 6A | 1/8B | - | - | - | - |
| 8 | 1/4 | 19 | - | 29 | 6A |
| 10 | 3/8 | 22 | - | 30 | 6A??8A |
| 15 | 1/2 | 26 | 19??21.5 | 38 | 8A??10A |
| 20 | 3/4 | 32 | 21.5??26 | 40 | 10A??15A |
| 25 | 1 | 39 | 26??32 | 45 | 15A??20A |
| 32A | 11/4B | 48.5 | 32??39 | 51 | 20A??25A |
| 40 | 11/2 | 54.5 | 39??48.5 | 54 | 25A??32A |
| 50 | 2 | 67 | 48.5??54.5 | 64 | 32A??40A |
