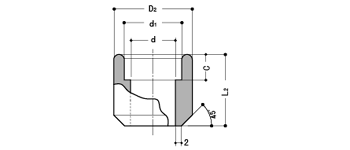

| 呼び径 | D1 | d | d1 | C Min | L2 | |
| 8A | 1/4B | 22 | 9.4 | 14.3 | 9.6 | 26 |
| 10 | 3/8 | 25 | 12.7 | 17.8 | 9.6 | 28 |
| 15 | 1/2 | 32 | 16.1 | 22.2 | 9.6 | 32 |
| 20 | 3/4 | 38 | 21.4 | 27.7 | 12.7 | 37 |
| 25 | 1 | 45 | 27.2 | 34.5 | 12.7 | 42 |
| 32 | 11/4 | 55 | 35.5 | 43.2 | 12.7 | 43 |
| 40 | 11/2 | 65 | 41.2 | 49.1 | 12.7 | 45 |
| 50 | 2 | 75 | 52.7 | 61.1 | 15.9 | 57 |
